Longxing brand computerized jacquard needle punching machine is a new type of fabric processing machinery with independent intellectual property rights, and independently developed by our company.
-
The machine adopted full computer servo control, all technical parameters and functions can be set, such as punch frequency, needle depth, roller tension, roller speed, intermittent length, etc.
-

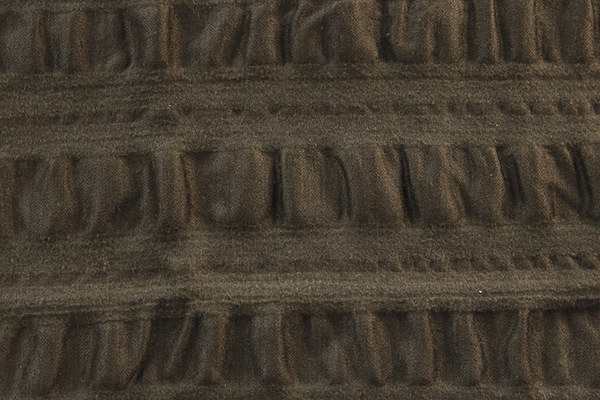

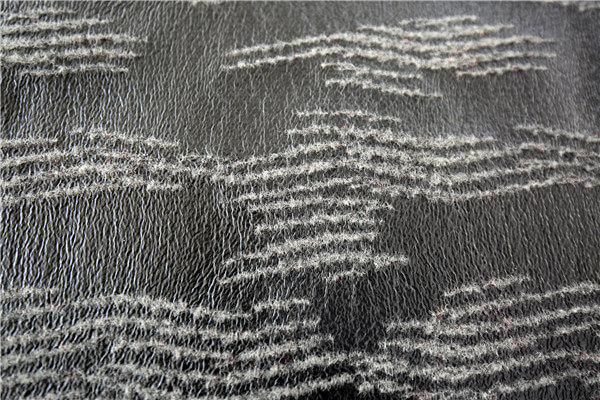

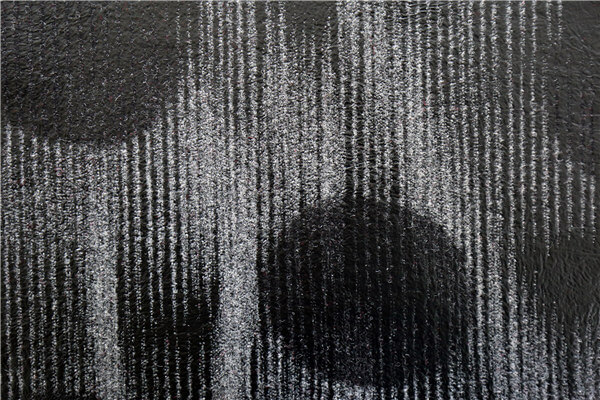

It has three functions of normal, intermittent and gradient, which could achieve four processes of tufting, compounding, location or overlap. It can not only meet the requirement of fabrics from spring to winter, and could also produce carpets, wall blankets, liners, shoe materials, etc. And which was suitable for the production of needled non-woven as well. Based on three functions and four processes, there are lots of pattern design and needle arrangement that could applied to the machine, such as full needle, regular graphics, abstract print, etc.
-
Longxing brand computerized jacquard needle punching machine currently has two specifications: JLZ2000 and JLZ800. The JLZ2000 is mainly for fabric post-processing to meet the needs of the market. The JLZ800 is a mini type of JLZ2000, which specially designed for teaching and designer studios, it is light, practical, easy to install and has fully functions.
|
Type |
JLZ2000【1】 |
JLZ800【1】 |
|
Max Needle Width |
2000mm |
800mm |
|
Max Needle Depth |
30mm |
30mm |
|
Max Needle Frequency |
1365 times/min |
666 times/min |
|
Roller |
Max output speed 24m/min, roller has 5 levels of pressure to set, controlled by computer. |
Max output speed 12m/min, roller has only 1 pressure, controlled by computer. |
|
Dust Collection |
Times and duration can be set. |
Same |
|
Control System |
PLC system |
Same |
|
Stop Function |
Needle board back to origin automatically when stopped. |
Same |
|
Needle Board Replace |
Automatic needle board replace position by press the button. |
Same |
|
Safety Device |
Air, oil pressure, motor overload, board limit, shield, emergency stop, alarm automatic stop. |
Same |
|
Power Consumption【2】 |
AC380V, 50HZ, 19.9KW |
AC380V, 50HZ, 9.75KW |
|
Net Weight (kg) |
6000 |
3000 |
|
Gross Weight (kg) |
6500 |
3500 |
|
Boundary Size (mm) |
3100(Length)×1400(Width)×2060(Height) |
1750(Length)×1000(Width)×1660(Height) |
|
Package Size (mm) |
3200(Length)×1500(Width)×2160(Height) |
1850(Length)×1100(Width)×1760(Height) |
|
Control Cabinet (mm) |
750(Length)×480(Width)×1310(Height) |
Same |
【2】The actual power consumption is much lower than the value, depending on speed and working conditions.
