Economical type computerized flat knitting machine，super cost effective model， equipped with direct selection system， full motor-driven cam system，motor controlling feeder alternation component， It has the good characteristics of high knitting efficiency and stability，therefore It is a better choice for investment on business.
-
Optional non-waste starting yarn comb, greatly reduce cost and improve the production efficiency
-
Double system adopts 4pcs standard yarn feeder rail, 16pcs yarn feeder equipped, so it can make more pattern and with more colors
-
Using New design of detachable insert needle bed, improved the knitting efficiency, and it is convenient for maintenance
-

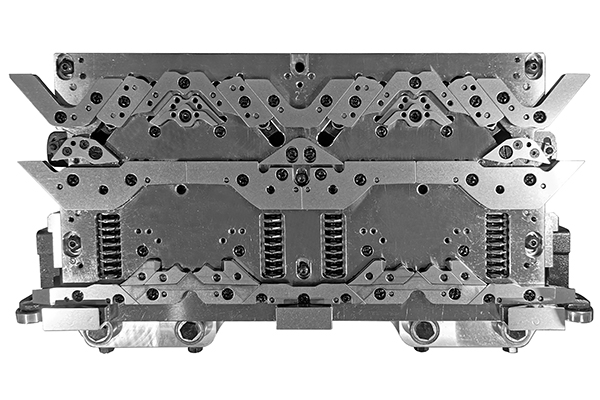

Full motor-driven and direct selection cam system Easy and stable structure, smaller size, lighter weight, higher knitting efficiency
|
Gauge |
7G/8G |
9G/10G |
12G/14G |
||
|
Knit width |
52inch(132cm) |
52inch(132cm) |
52inch(132cm) |
80inch(203cm) |
|
|
Knitting system |
Singlecarriage Single/doublesystem |
Singlecarriage |
Singlecarriage |
Singlecarriage |
Twocarriage |
|
Cam system |
Normalmodel |
Smallercarriage |
Smallercarriage |
||
|
Needle bed |
Normalmodel |
Normalmodel |
Insetplatemodel |
||
|
Selection system |
6segmentdirectselection |
8segmentdirectselection |
8segmentdirectselection |
||
|
Machine speed |
Maximum speed1.4meter/second,knittingspeedcouldbesethigherorloweraccordingtoknitstructureand |
||||
|
Needle bed racking |
Maximum L/Rmovementrange2inch,drivenbyservomotor |
||||
|
Auto stop device |
Yarnbreakage,yarnknot,fabric-rewindneedlecollision,overload,setknitpiecefinish,specificlinestop, program error |
||||
|
Safety equipment |
Thewholemachineisequippedwithanti-noiseandanti-dustcover,infraredraysensor,emergencystopsensor, |
||||
|
Power |
VoltageAC220v/AC380v,Frequency50Hz/60Hz,Powerconsumption:1Kw |
||||
|
Standard configuration |
Highpositionrubberroller,adjustablesegmentbysegment |
||||
|
Optional configuration |
Normaldownroller/singlecuttingdevice/combwithhookneedle/combwithwire/moveabledisplay/spandex feedingdevice |
||||
