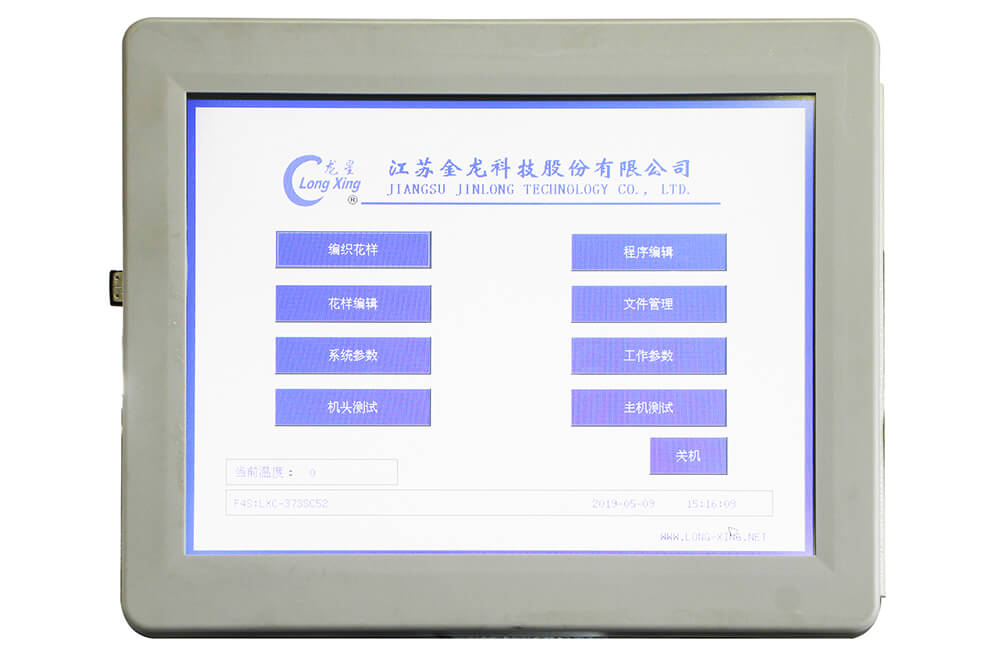

LED touch screen for displaying various knitting related parameters. -
Reduce the size and weight of the carriage and make the return speed faster. -
High-performance servo control technology, the machine's running position is more accurate, and the return is faster. -
Adjustable tight tuck device can fully meet the special needs of the loose or tight tuck organization of the shoe upper, independent pushing needle cam control mechanism, shorten the carriage return time. -
Cross-type sinker design, controlled by the system, the depth of the yarn is suitable for the knitting of thick fabrics and special fabrics such as knee pads and gloves. -
Provides consistent and stable yarn feed tension with stepless tension adjustment and non-contact electronic induction alarm.
|
KSC092D-14G |
|
|
Gauge |
14G |
|
Width |
36 inches |
|
System |
One carriage double system |
|
Speed |
Maximum speed 1.4m/s |
|
Racking |
Driving by servo motor, 2 inches left and right |
|
Selection system |
8-segment needle selector, pre-select needle system |
|
Sinker |
Cross-type sinker driven by stepper motor |
|
Automatic parking device |
Yarn break, yarn knot, rewinding, needle broken, pieces completed, overload, designated parking, program error, etc |
|
safety devices |
The whole machine covers the cover that reduces noise and dust, the front and rear cover infrared stop sensor, emergency stop, power cut-off device |
|
Drawing device |
High-position roller, segment adjustment |
|
Needle push mechanism |
Controlled by electromagnets for faster return |
|
Tight tuck |
Tight tuck cam controlled by step motor, segmental tight tuck density control |
|
Machine size and weight |
Volume: length X width X height 2150X865X1850 (mm) |
|
Power device |
Voltage: AC220V/380V Frequency: 50Hz/60Hz Power: 1.5KW |
